Agent Management Guide¶

This guide covers the comprehensive management of KrakenHashes agents, including registration, monitoring, scheduling, and troubleshooting.

Table of Contents¶

Understanding Agents
Agent Registration Process
Managing Agent Connections
Monitoring Agent Health and Performance
Agent Scheduling and Availability
Hardware Capabilities and Benchmarks
Troubleshooting Agent Issues

Understanding Agents¶

What are Agents?¶

Agents are distributed compute nodes that execute password cracking tasks using hashcat. They connect to the KrakenHashes backend server via WebSocket and receive job assignments based on their availability and capabilities.

Agent Architecture¶

Each agent consists of: - Hardware Detection: Automatic detection of GPUs (NVIDIA, AMD, Intel) and CPUs - Performance Monitoring: Real-time tracking of resource utilization - File Synchronization: Automatic download of wordlists, rules, and hashlists - Job Execution: Running hashcat with specified attack parameters - Result Reporting: Real-time crack updates back to the server

Agent States¶

Agents can be in one of the following states:

pending: Initial registration state, awaiting activation
active: Connected and ready to receive jobs
inactive: Disconnected but previously active
error: Experiencing issues preventing normal operation
disabled: Administratively disabled

Agent Registration Process¶

Overview¶

Agent registration uses a claim code (voucher) system to ensure only authorized agents can join the system.

Creating Claim Codes¶

Navigate to Admin Panel
Go to Settings → Agent Management → Claim Codes

Generate New Claim Code

Type: Single-use or Continuous
Owner: Select user who will own the agents

Claim Code Types
Single-use: Can only be used once to register one agent
Continuous: Can be used multiple times (useful for auto-scaling)

Agent Registration Steps¶

Agent Installation

# On the agent machine
./krakenhashes-agent install

Initial Registration

# Using the claim code
./krakenhashes-agent --host your-server:31337 --claim XXXX-XXXX-XXXX

Certificate Download
Agent automatically downloads TLS certificates
Stores credentials in ~/.krakenhashes/agent/
Connection Establishment
Agent connects via WebSocket using API key authentication
Sends hardware information and capabilities

Registration Security¶

Claim codes are normalized (uppercase, no hyphens)
API keys are generated using cryptographically secure random bytes
TLS certificates ensure encrypted communication
Agent ID and API key must match for authentication

Agent Management interface showing active claim vouchers with different types and currently registered agents with their hardware configurations

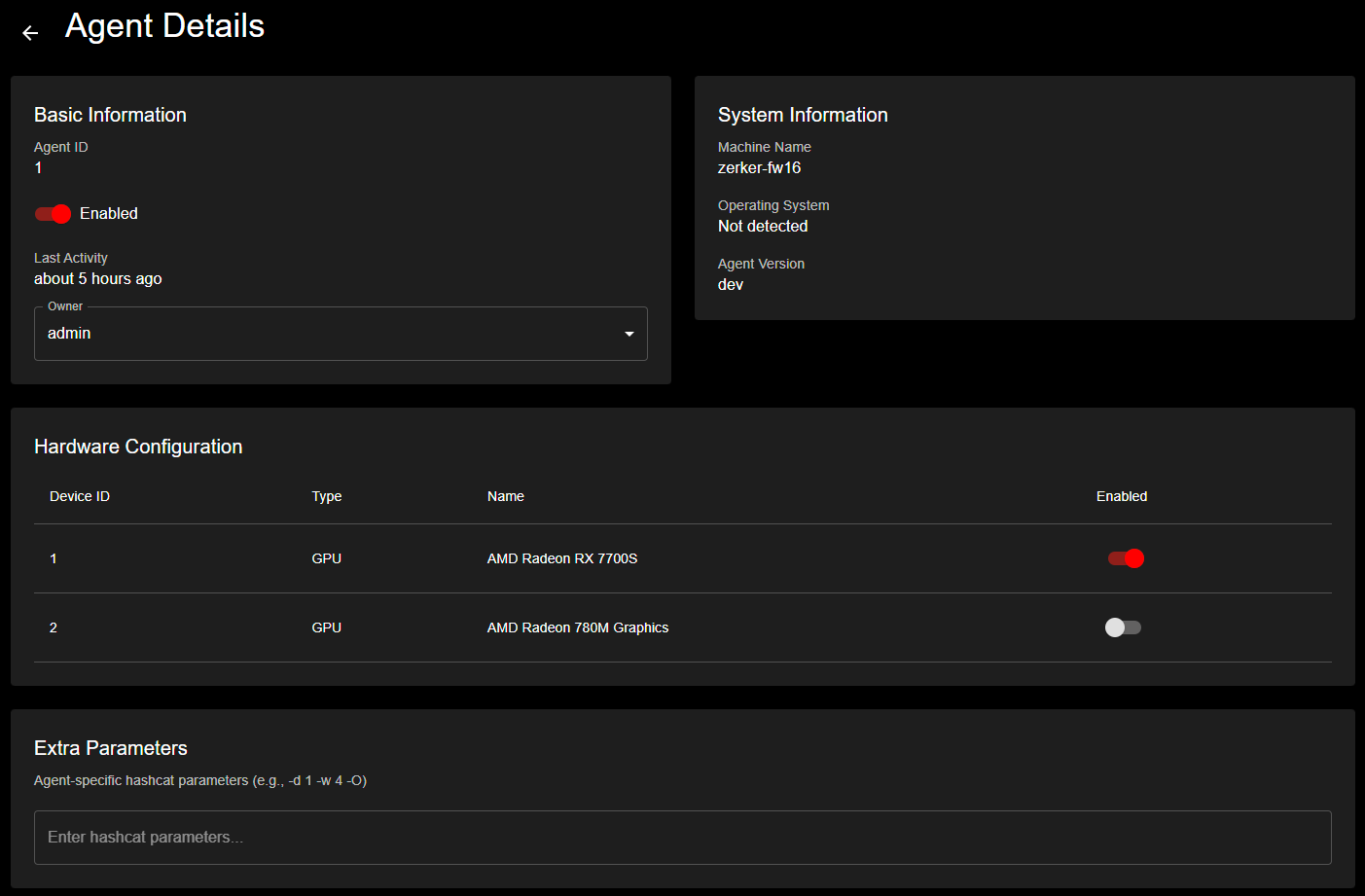

Agent Details Detailed agent view displaying system information, hardware configuration, and GPU device management with enable/disable controls

Managing Agent Connections¶

WebSocket Communication¶

Agents maintain persistent WebSocket connections for: - Real-time job assignments - Status updates - Crack result reporting - Heartbeat monitoring

Connection Parameters¶

# Environment variables for connection tuning
KH_WRITE_WAIT: "10s"      # Write timeout
KH_PONG_WAIT: "60s"       # Time to wait for pong response
KH_PING_PERIOD: "54s"     # Ping interval (must be < pong wait)

Monitoring Connected Agents¶

Dashboard View
Real-time agent status on main dashboard
Shows connected/disconnected agents
Current task assignments
Agent List Page
Detailed view of all agents
Filter by status, owner, or team
Last heartbeat timestamps

Managing Agent Settings¶

// PUT /api/agents/{id}
{
  "isEnabled": true,
  "ownerId": "user-uuid",
  "extraParameters": "--custom-charset1=?l?u?d"
}

Disabling/Enabling Agents¶

Disabled agents remain connected but don't receive jobs
Useful for maintenance or troubleshooting
Preserves agent configuration and history

Monitoring Agent Health and Performance¶

Real-time Metrics¶

Agents report metrics every 30 seconds:

{
  "cpu_usage": 45.2,
  "memory_usage": 62.8,
  "gpu_utilization": 98.5,
  "gpu_temp": 72.0,
  "gpu_metrics": {
    "device_0": {
      "temperature": 72,
      "utilization": 98.5,
      "memory_used": 8192,
      "fan_speed": 85
    }
  }
}

Performance Monitoring Dashboard¶

Agent Detail Page
Historical performance graphs
Temperature trends
Utilization patterns
Hash rate performance
Metrics Time Ranges
1 hour (default)
24 hours
7 days
30 days

Device Management¶

Each agent can have multiple devices (GPUs):

// GET /api/agents/{id}/devices
[
  {
    "id": 1,
    "device_index": 0,
    "device_type": "GPU",
    "device_name": "NVIDIA GeForce RTX 4090",
    "is_enabled": true,
    "capabilities": {
      "compute_capability": "8.9",
      "memory": 24576
    }
  }
]

Enabling/Disabling Devices¶

// PUT /api/agents/{id}/devices/{deviceId}
{
  "enabled": false  // Disable specific GPU
}

Agent Scheduling and Availability¶

Scheduling Overview¶

Agents support weekly scheduling to optimize resource usage and costs.

Configuring Agent Schedules¶

Enable Scheduling

// PUT /api/agents/{id}/scheduling-enabled
{
  "enabled": true,
  "timezone": "America/New_York"
}

Set Daily Schedules

// POST /api/agents/{id}/schedules
{
  "dayOfWeek": 1,  // Monday (0=Sunday, 6=Saturday)
  "startTimeUTC": "22:00",
  "endTimeUTC": "06:00",
  "timezone": "America/New_York",
  "isActive": true
}

Schedule Features¶

UTC Storage: All times stored in UTC for consistency
Timezone Display: Shown in user's local timezone
Overnight Support: Schedules can span midnight
Bulk Updates: Update entire week at once

Schedule Validation¶

Start and end times must be different
Day of week must be 0-6
Times in HH:MM format
Automatic handling of daylight saving time

Availability Considerations¶

When scheduling is enabled: - Agents only receive jobs during scheduled hours - Running jobs continue to completion - Agents remain connected outside schedule - Heartbeat monitoring continues

Hardware Capabilities and Benchmarks¶

Hardware Detection¶

Agents automatically detect:

{
  "hardware": {
    "cpus": [
      {
        "model": "AMD Ryzen 9 7950X",
        "cores": 16,
        "threads": 32,
        "frequency": 4.5
      }
    ],
    "gpus": [
      {
        "vendor": "NVIDIA",
        "model": "GeForce RTX 4090",
        "memory": 24576,
        "driver": "545.29.06"
      }
    ]
  }
}

Benchmark System¶

Agents can run benchmarks for different hash types:

-- Benchmark results stored per agent
agent_benchmarks (
  agent_id,
  attack_mode,     -- 0=dictionary, 3=bruteforce, etc.
  hash_type,       -- 0=MD5, 1000=NTLM, etc.
  speed,           -- Hashes per second
  created_at
)

Performance Metrics¶

Key metrics tracked: - Hash Rate: Speed for each hash type - GPU Temperature: Thermal monitoring - GPU Utilization: Processing efficiency - Memory Usage: VRAM consumption - Power Consumption: Wattage tracking

Consecutive Failure Tracking¶

Agents track consecutive task failures: - Increments on task failure - Resets on successful completion - Can trigger automatic disabling - Helps identify problematic agents

Troubleshooting Agent Issues¶

Common Connection Issues¶

Agent Won't Connect
Check TLS certificates are valid
Verify API key hasn't expired
Ensure firewall allows WebSocket (port 8443)
Check agent logs for detailed errors
Frequent Disconnections
Review ping/pong timeout settings
Check network stability
Monitor agent system resources
Verify no proxy interference

Authentication Problems¶

Invalid API Key

# Regenerate API key
./krakenhashes-agent reregister --claim-code NEW-CODE

Certificate Issues
Check certificate expiration
Verify CA certificate is trusted
Ensure certificate matches server hostname

Performance Issues¶

Low Hash Rates
Check GPU driver versions
Monitor thermal throttling
Verify power settings
Review extra parameters
High Failure Rate
Check hashcat binary compatibility
Verify file synchronization
Review job parameters
Monitor system stability

Debugging Tools¶

Agent Logs

# View agent logs
tail -f ~/.krakenhashes/agent/logs/agent.log

Server-side Monitoring

-- Check agent errors
SELECT id, name, last_error, consecutive_failures
FROM agents
WHERE last_error IS NOT NULL
ORDER BY updated_at DESC;

WebSocket Messages
Enable debug logging for detailed messages
Monitor heartbeat intervals
Check message acknowledgments

Recovery Procedures¶

Reset Agent State

-- Clear error state
UPDATE agents
SET status = 'inactive',
    last_error = NULL,
    consecutive_failures = 0
WHERE id = ?;

Force Reconnection
Restart agent service
Clear local cache
Verify network connectivity
Complete Re-registration
Generate new claim code
Remove agent from database
Perform fresh registration

Monitoring Best Practices¶

Set Up Alerts
Agent offline > 5 minutes
Consecutive failures > 3
Temperature > 85°C
Low hash rates
Regular Maintenance
Update agent software
Clean GPU fans
Check thermal paste
Update drivers
Capacity Planning
Monitor job queue depth
Track agent utilization
Plan for peak loads
Consider scheduling optimization

Advanced Topics¶

Agent Clustering¶

Group agents by capability
Assign specialized workloads
Balance load across regions
Implement failover strategies

Security Hardening¶

Rotate API keys periodically
Implement IP whitelisting
Use dedicated agent VLANs
Monitor for anomalous behavior

Integration Points¶

Export metrics to monitoring systems
Webhook notifications for events
API automation for scaling
Custom scheduling algorithms

Conclusion¶

Effective agent management is crucial for maintaining a high-performance distributed cracking system. Regular monitoring, proper scheduling, and proactive troubleshooting ensure optimal resource utilization and job completion rates.

For additional support or advanced configurations, consult the system administrator documentation or contact the development team.
