Hashlists

Hashlists are fundamental to KrakenHashes, representing collections of hashes uploaded for cracking jobs or analysis. This document outlines how hashlists are uploaded, processed, and managed within the system.

Overview

  • Definition: A hashlist is a file containing multiple lines, where each line typically represents a single hash (and potentially its cracked password).
  • Association: Each hashlist is associated with a specific Hash Type (e.g., NTLM, SHA1) and can optionally be linked to a Client/Engagement.
  • Processing: Uploaded hashlists undergo an asynchronous background processing workflow to ingest the hashes into the central database.
  • Storage: Hashlist files are stored on the backend server in a configured directory.

Uploading Hashlists

Hashlists are typically uploaded through the frontend UI.

  1. Navigate: Go to the "Hashlists" section of the dashboard.

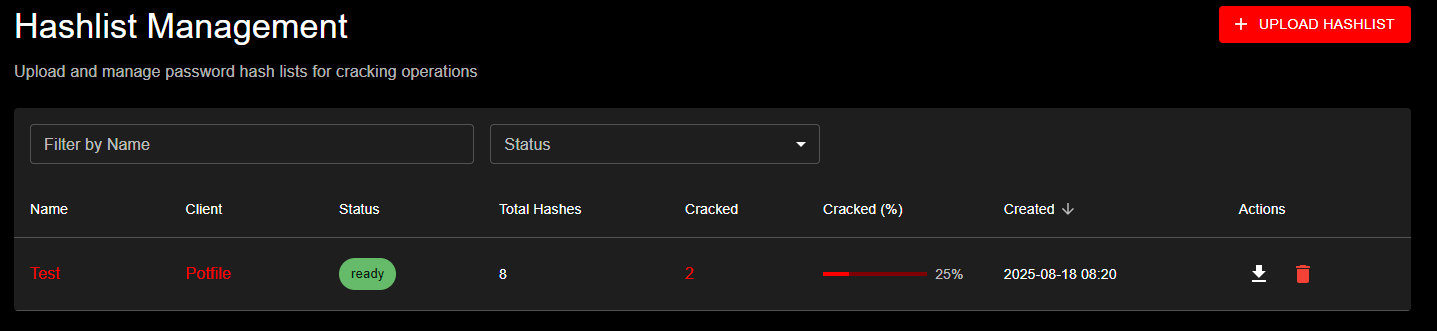

Hashlist Management Interface Hashlist Management page showing the upload interface with UPLOAD HASHLIST button and data table displaying hashlist details including Name, Client, Status, Total Hashes, Cracked percentages, and Created dates

  1. Initiate Upload: Click the "Upload Hashlist" button.
  2. Fill Details: In the dialog, provide:
    • Name: A descriptive name for the hashlist.
    • Hash Type: Select the correct hash type from the dropdown. This list is populated from the hash_types table in the database (see Hash Types below). The format displayed is ID - Name (e.g., 1000 - NTLM).
    • Client: (Optional) Select an existing client to associate this hashlist with, or create a new one on the fly.
    • File: Choose the hashlist file from your local machine.
  3. Submit: Click the upload button in the dialog.

API Endpoint

The frontend interacts with the POST /api/hashlists endpoint. This endpoint expects a multipart/form-data request containing the fields mentioned above (name, hash_type_id, client_id) and the hashlist file itself.

File Storage

  • Uploaded hashlist files are stored on the backend server.
  • The base directory for uploads is configured via the KH_DATA_DIR environment variable.
  • Within the data directory, hashlists are stored in a specific subdirectory, typically hashlist_uploads, but configurable via KH_HASH_UPLOAD_DIR.
  • The maximum allowed upload size is determined by the KH_MAX_UPLOAD_SIZE_MB environment variable (default: 32 MiB).

Hashlist Processing

Once a hashlist file is uploaded and initial metadata is saved, it enters an asynchronous processing queue.

Status Workflow

A hashlist progresses through the following statuses:

  1. uploading: Initial state when the upload request is received.
  2. processing: The backend worker has picked up the hashlist and is actively reading the file and ingesting hashes.
  3. ready: Processing completed successfully. All valid lines have been processed and stored. The hashlist is now available for use in cracking jobs.
  4. ready_with_errors: Processing finished, but one or more lines in the file could not be processed correctly (e.g., invalid format for the selected hash type). Valid lines were still ingested. Check backend logs for details on specific line errors. (Not fully implemented) `
  5. error: A fatal error occurred during processing (e.g., file unreadable, database error during batch insert). The error_message field on the hashlist provides a general reason. Check backend logs for more details.

Processing Steps

The backend processor performs the following steps:

  1. Fetch Details: Retrieves the hashlist metadata (ID, file path, hash type ID) from the database.
  2. Open File: Opens the stored hashlist file.
  3. Scan Line by Line: Reads the file line by line.
    • Empty lines are skipped.
    • Lines starting with # are treated as comments and skipped.
  4. Extract Hash/Password:
    • Default: Checks for a colon (:) separator. If found, the part before the colon is treated as the hash, and the part after is treated as the pre-cracked password (is_cracked = true). If no colon is found, the entire line is treated as the hash (is_cracked = false).
    • Type-Specific Processing: For certain hash types (e.g., 1000 - NTLM), specific processing logic might be applied to extract the canonical hash format from more complex lines (like user:sid:LM:NT:::). This logic is determined by the needs_processing flag and potentially the processing_logic field in the hash_types table.
  5. Batching: Hashes are collected into batches (size configured by KH_HASHLIST_BATCH_SIZE, default: 1000).
  6. Database Insertion: Each batch is processed:
    • The system checks if any hashes in the batch already exist in the central hashes table (based on hash value and hash type ID).
    • New, unique hashes are inserted into the hashes table.
    • Entries are created in the hashlist_hashes join table to link both new and existing hashes from the batch to the current hashlist.
    • If a hash being added includes a pre-cracked password, the corresponding record in the hashes table is updated (is_cracked=true, password=...).
  7. Update Status: Once the entire file is processed, the hashlist status is updated to ready, ready_with_errors, or error, along with the final total_hashes and cracked_hashes counts.

Supported Input Formats

The processor primarily expects:

  • One hash per line.
  • Optional: hash:password format for lines containing already cracked hashes.
  • Lines starting with # are ignored.
  • Empty lines are ignored.
  • Specific formats handled by type-specific processors (e.g., NTLM).

Hash Types

  • Supported hash types are defined in the hash_types database table.
  • This table is populated by a database migration (000016_add_hashcat_hash_types.up.sql) which includes common types and examples sourced from the Hashcat wiki.
  • Each type has an ID (corresponding to the Hashcat mode), Name, Description (optional), Example (optional), and flags indicating if it needs special processing (needs_processing, processing_logic) or is enabled (is_enabled).
  • The frontend uses the GET /api/hashtypes endpoint (filtered by is_enabled=true by default) to populate the selection dropdown during hashlist upload.

Managing Hashlists

  • Viewing: The "Hashlists" dashboard provides a sortable and filterable view of all accessible hashlists, showing Name, Client, Status, Progress (% Cracked), and Creation Date.

Hashlist Detail View Detailed view of a hashlist named 'Test' showing ready status, crack progress indicator, and sample hashes section with individual hash entries and their crack status - Downloading: Use the download icon on the dashboard or the GET /api/hashlists/{id}/download endpoint to retrieve the original uploaded hashlist file. - Deleting: Use the delete icon on the dashboard or the DELETE /api/hashlists/{id} endpoint. Deleting a hashlist removes its entry from the hashlists table, removes associated entries from the hashlist_hashes table, and deletes the original hashlist file from the backend storage. It does not delete the individual hashes from the central hashes table, as they might be referenced by other hashlists.

Data Retention

Uploaded hashlists and their associated data are subject to the system's data retention policies. Old hashlists may be automatically purged based on client-specific or default retention settings configured by an administrator. See Admin Settings documentation for details.
